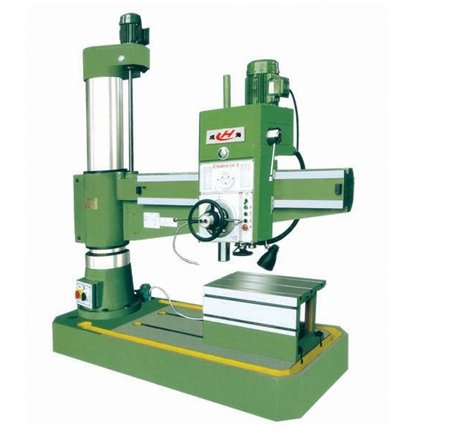

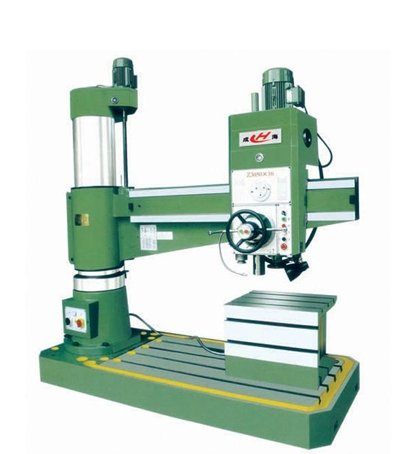

Radial Drilling Machine
Radial Drilling Machine
RadialDrillingMachineZ3032*10
(Mechanicaltransmissionandmechanicalclamping)
1.Max.Drillingdiameter:32mm
2. Distancefromspindlenosetotable:220-980mm
3. Distancebetweenspindleaxisandcolumnsurface:
260-1000mm
4. Spindletravel:120mm
5.Morsetaper:#4
6. Spindlespeedrange:108,162,262,398,665,
1000rpm
7. Spindlespeedstep:6
8. Rockerrotaryangle:360°
9.Mainmotorpower:1.5-2.2kw
10. Liftingmotorpower:0.75kw
11.Weight:800kg
12. Overalldimensions:1235*600*1780mm

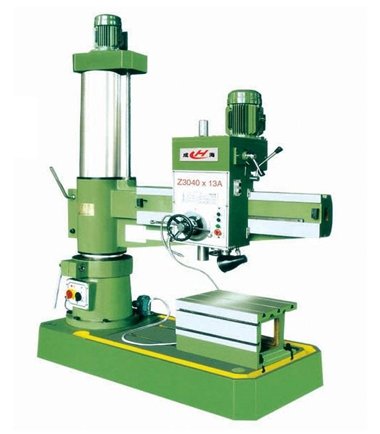

Radial ArmDrilling MachineZ 3040*13A
(Mechanicaltransmissionandmechanicalclamping)
1.Max.Drillingdia.:castiron40mm/steel32mm
2.Distancefromspindlenosetotable:260-1050mm
3.Distancebetweenspindleaxisandcolumnsurface:
360-1300mm
4.Spindletravel:200mm
5.Spindletaper:MT4
6.Spindlespeedrange:75-1200rpm
7.Spindlespeedstep:6
8.Spindlefeedingrange:0.10-0.25rpm
9.Spindlefeedstep:3
10.Rockerrotaryangle:360°
11.Mainmotorpower:2.2kw
12.Liftingmotorpower:1.5kw
13.Weight:1800kg
14. Overalldimensions:1800*810*2300mm

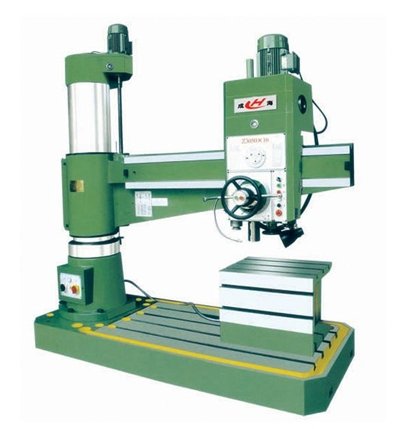

Radial Drilling Machine Z3040*14/1
(Mechanicaltransmissionandhydraulicclamping)
1.Max.Drillingdiameter:40mm
2.Distancefromspindlenosetotable:250-960mm
3.Distancebetweenspindleaxisandcolumnsurface:
480-1400mm
4.Spindleboxmovementinhorizontal:1015mm
5.Spindletravel:270mm
6.Spindletaper:MT4
7.Spindlespeedrange:40-1896r.p.m
8.Spindlespeedstep:12
9.Spindlefeedingrange:0.13-0.54rpm
10.Spindlefeedstep:4
11.Rockerrotaryangle:360°
12.Mainmotorpower:2.2kw
13.Weight:2200kg
14.Overalldimensions:2053*820*2483mm
