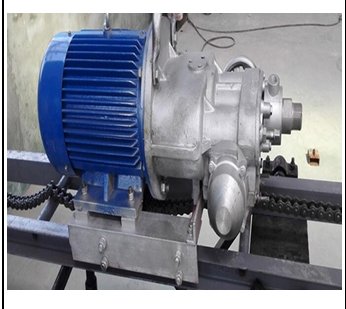

Explosion proof electric rock drill rig
Explosion proof
electric rock drill
rig
1.Model:KHYD150
2.Rated power:7.5kw
3.Rated voltage:380v/50HZ
4.Rated speed:1440r/min
5.Drilling dia:42-80mm(for
rock),80-120mm(for coal)
6.Drilling depth:15m(for
rock),40-100m(for coal)
7.Weight:155kg
8.Spindle rated speed:240R/min
9.Spindle rated torque:≥150N.m
Send download link to:
Contact:WhatsApp /+967777772829
Email : Contact@alternative-market.com
Views: 4
