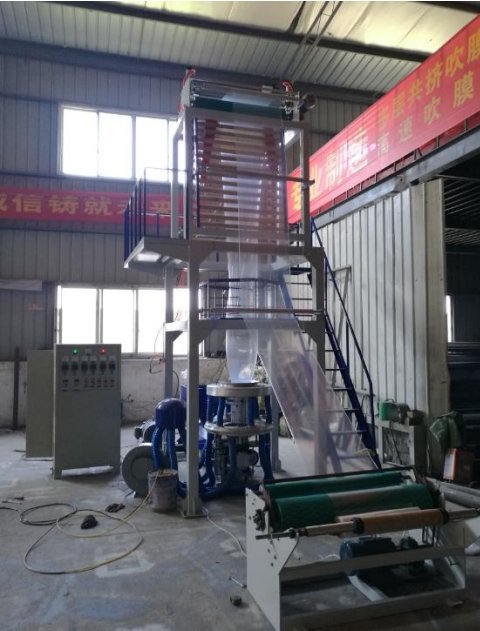

Plastic roll production machine

It is extruder, cylinder and screw rods are made of quality alloy steel that have been
nitrized and processed in a precision way. Hence it is sound in hardness, durable in
corrosion resistance. The specially-designed screw is of sound quality in plasticizing,
which helps increase the production capacity. It is applied to blowing the plastic films
like low density polytene (LDPE), high density polytene(HDPE) and linear low
density polytene (LLDPE). It is widely applied to producing the packing bags for
foodstuff, clothing, rubbish bag and vest ones.
OPTIONAL EQUIPMENT:
1)AUTO LOAD 2)AIR COMPRESSOR 3)SPECIAL DIE
4)DIE ROTARY DEVICE 5)BOUBLE SIDES WINDER 6) UP AND DOWN
Model A50
Diameter of screw φ50
Rcduced diameter of
film(mm) 100-600
Single-sided
Thickness of Film 0.008-0.08mm
Max.Extrusion(Kg/h
) 30-35
L/D 28:1
Power of main
moto(kw) 11
Power of Tracion
main moto(kw) 1.5
Die head Φ60 , φ120
Heating Power(kw) 11
Outline diameter(L x
W x H) (mm) 4800 x 1900 x 4100
Weight(T) 1.5T
More Detail:
1.Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated
2.FIXED DIE HEAD DEVICE
3.Gear box: water cooling reducer, hard tooth surface
4.Single winder
5.counter of metric
