Machine one:Circular seam welding machine

Machine one:Circular seam welding machine

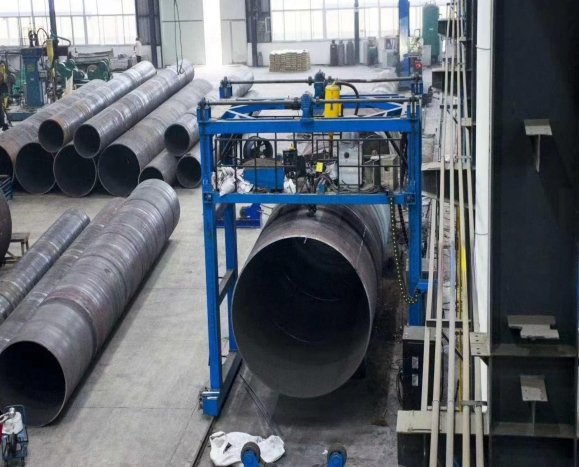

This machine is designed according to special character of vessel welding,its mainly consist
of Gantry frame,slide structure,welding gun tracking device,Flux recovery system,electrical
control system and Submerged welding machine. Gantry frame is main part of machine,Advanced and reasonable design,Main components
are specially proceeded after welding,it runs with reliable ability,and it also has long using
time.Walking structure is controlled two AC inverter motors and they are synchronous.There is
rolls structure between railway and frame ,it makes sure safety of running and smooth. There is welding seam tracking system for Gas tank welding.This guiding device adopts
three axis tracking system,are pressure for up and down tracking and floating for left and right
tracking,also there is welding gun adjusting device to make sure welding gun at right welding
position
There is a flux recovery system,flux floats to unwelded joint through flux funnel to make sure
normal welding.Recovery pipe collects flux behind welding gun.Then Flux will be circularly used
There is welding seam monitoring system,we can check welding condition by control cabinet
directly. Submerged welding power is set on Gantry frame ,so that we can use less control cable
