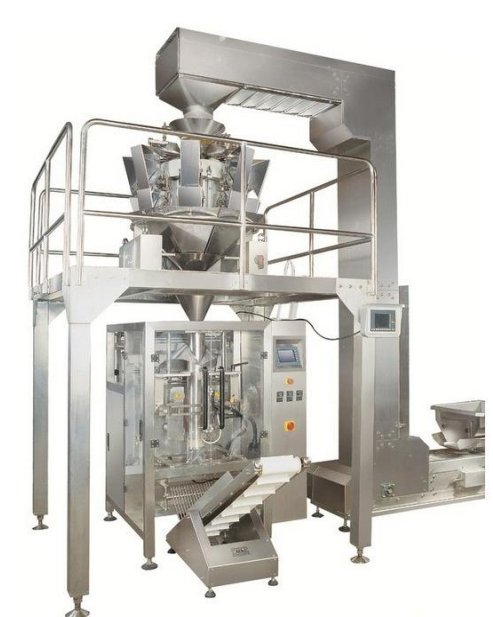

Full Automatic Potato Chip Packing Machine

Full Automatic Potato Chip Packing Machine

Technical Specifications:
Model DXD-1000KD
Machine speed 30-50bags/minute 1800-3000bags/hour
Bag size range (L)30-300 mm (W) 60mm-200mm
Bag type Pillow Bag or Gusset Pillow Bag
Weigher for granule 10heads weigher
Volume Cup range 10-1000grams(adjustable; only set weight on the machine)
Maximum film width for packing machine 520mm
Film Material For Sachet Laminated paper film, Pure Aluminum film(Foil), Pe+Paper, PE Film
Voltage Single-phase 220V 50-60Hz
Total Power 2.2KW
Control system for machine line Delta PLC control system
Machine
’s material Stainless Steel 304(SS304)
Air source 0.6Mpa
Screen Weinview Full touching screen
Motor Servo Motor and Drive
Machine noise ≤80dB

Following Tools will be included:
1 8-10solid wrench 1pc
2 10-12 solid wrench 1 pc
3 12-14 solid wrench 1pc
4 14-17 solid wrench 1 pc
5 17-19 solid wrench 1 pc
6 22-24solich wrench 1pc
7. + – screw cutter 1 pc for each
8 M5 inner hexagon spanner 1 pc
9 M6 inner hexagon spanner 1pc
10 M8 inner hexagon spanner 1 pc
11. M10 inner hexagon spanner 1 pc
12 Scissors

Auto Loader
– The lifting height: 2.6-3.5m
– Lifting speed: 2.5-5cubic meter/hour
– Powder: 550W
– Size: 2336x435x3855mm
– Material: SS304
-Power: 220V/50HZ, 60HZ, single phase

Enlarge 10 heads Weigher
-2.5L hopper
-Weight:10-2000g
-Weight accuracy: ±5g
-Weight speed: 30-65bags/min
– Control Panel: 8.4″LCD Keypad
Screen/10.4Touch Screen
– Driving System: step motor
– Packing Dimension: 1482(L)x1600
(W)x2000mm(H)
-Gross weight: 420KG
-Material: SS304
-Power: 220V/50HZ, 60HZ, single phase

520 Vertical Packaging Machine
-Max film width: 520mm
-Bag size:
W:60-250mm
L:80-350mm
-Bag type: pillow bag
-Speed:10-60bags
-Film thickness:
-7”HMI,PLC
-Film thickness:0.05-0.09mm
-Air consumption:0.8mpa
-Gas consumption:0.4m3/min
Including one bag former
Including date printer
– Power:220V/50HZ, 60HZ, single phase
