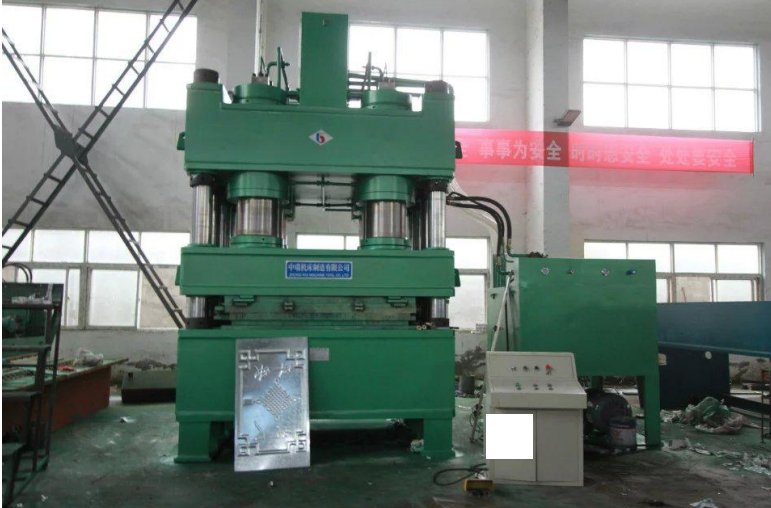

Eight Column Hydraulic Press

Eight Column Hydraulic Press

a. .With eight-column and six hydraulic cylinder structure, the press is designed
economically and practically. The hydraulic system adopts advanced cartridge inserted
valve integrated system which has large flow, low pollution, easy control and reliable
performance. b. The independent electrical control system ensures reliable and operational
performance of system. The machine uses button centralized control,which can be
operated in manual and semi-automatic way. c. The molding techniques are fixed-pressure and fixed-stroke which has the function
of time delay under fixed pressure.Working pressure and stroke can be adjusted within a
certain scope according to molding needs.

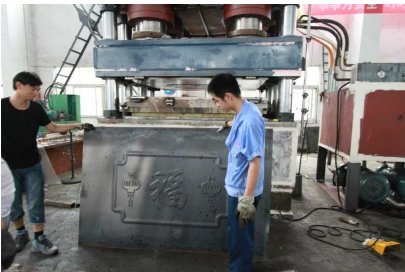

YTD32-3000T eight column hydraulic embossing press
Item Specification Unit Note
Nominal Force 30000 KN
Return Force 2000 KN
Max hydraulic pressure 25 mpa
Stroke of slider 600 mm
Distance between slider and
worktable
1200 mm
Ram speed
Descent 90 mm/s
Pressing 8 mm/s
Return 80 mm/s
Worktable size
L-R 2440 mm
F-B 1200 mm
Motor power 2*30 KW
Weight 50 Ton
Machines covering
area
L-R 3500 mm
F-B 2200 m
